mura16W-GT + HP server + Visualization

6.044,75€
SKU: GDS0008
Control your building using the top Netx Automation Visualization Software which supports:

  • Up to 10.000 data points. (Upgratable to unlimited)
  • Upgratable to up to 500 simiulatiously clients.
  • Connected from Internet via Desktop, laptop, netbook, smartphone e.t.c.
  • Connection to 1 Ip gateway (required) (Upgradable to up to 20 gateways)

  • Controls with friendly way:

  • Lighting
  • HVAC
  • Blinds
  • Lighting
  • Street Door Communication
  • Cameras
  • Alarms - Alerts
  • Security System
  • Energy


  • -------------------------

    Equipment

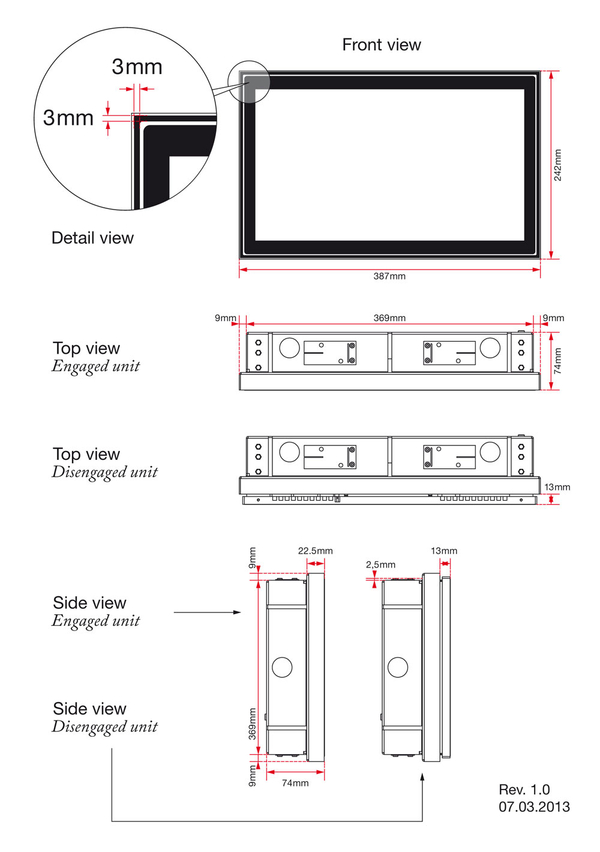

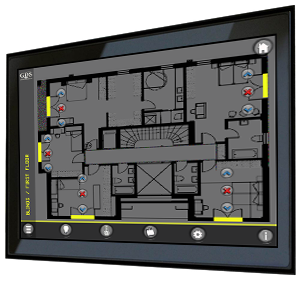

    mura16W-GT


    16" TFT horizontal, 1366x768, 220 cd/m², AMD Fusion T56N, 2x 1.65 GHz, 2 GB RAM, 0 GB or 8 GB flash soldered, with fan (temporary connection), dual gigabit ethernet, 2x USB2.0, 1x RS-232, audio (Line-Out), SD Card socket, KNX (optional) , PreVision-Control, Glastouch/Multitouch, POWER INPUT: 24VDC-100W

    ------------------------

    Operating system


    Windows7® Professional DE or US on SSD


    ------------------------

    Server

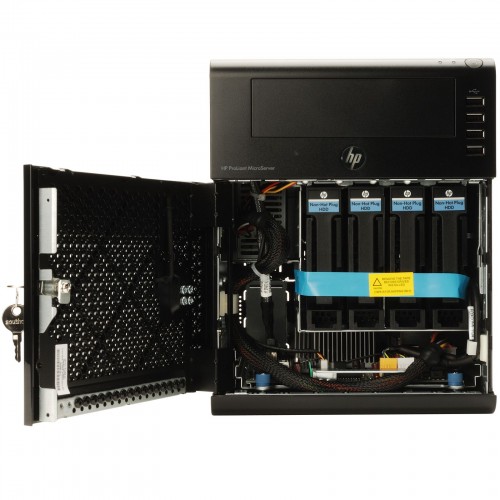

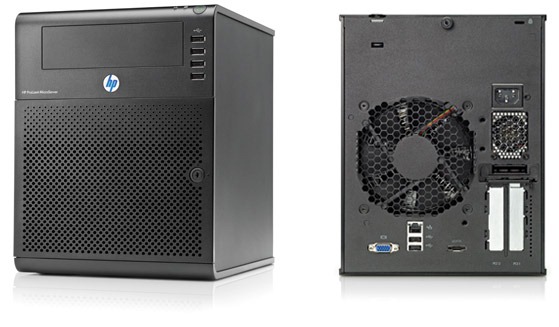

    HP Micro Proliant N40L with Microsoft Windows XP Dual-Core AMD Turion II Model NEO N40L (1.5 GHz) 2 MB L2 Cache 2GB (1 x 2GB) PC3-10600E (UDIMM) Embedded SATA Controller with Embedded RAID (0, 1) Up to 4 Non Hot Plug Hard Drives 250GB SATA Non Hot Plug (LFF) Single NC107i PCIe Gigabit Server Adapter Ports: eSATA (1), VGA (1), USB 7 (6 + 1 internal) Slots: 1 PCI-Express x16 (x8 speed), 2 PCI-Express x8 (x4 speed) 150 Watts Non-Hot Plug, Non redundant Power Supply


    ------------------------

    Visualization


    S04.01.0.20.02 NetX Voyager Server 1.0 UD (HOME VERSION)


    Do you prefer: -------------------------

    Mounting

    • muraW-EPG

      Built-in box for flush mounting ( + 256,50 € in Basic price)
    • muraW-GT-UPG

      Built-in box ( + 81,00 € in Basic price)
    • muraMONT(R2)

      Mounting support set straight plates for plastering (4 pieces) ( + 40,50 € in Basic price)
Price: 6.044,75€
