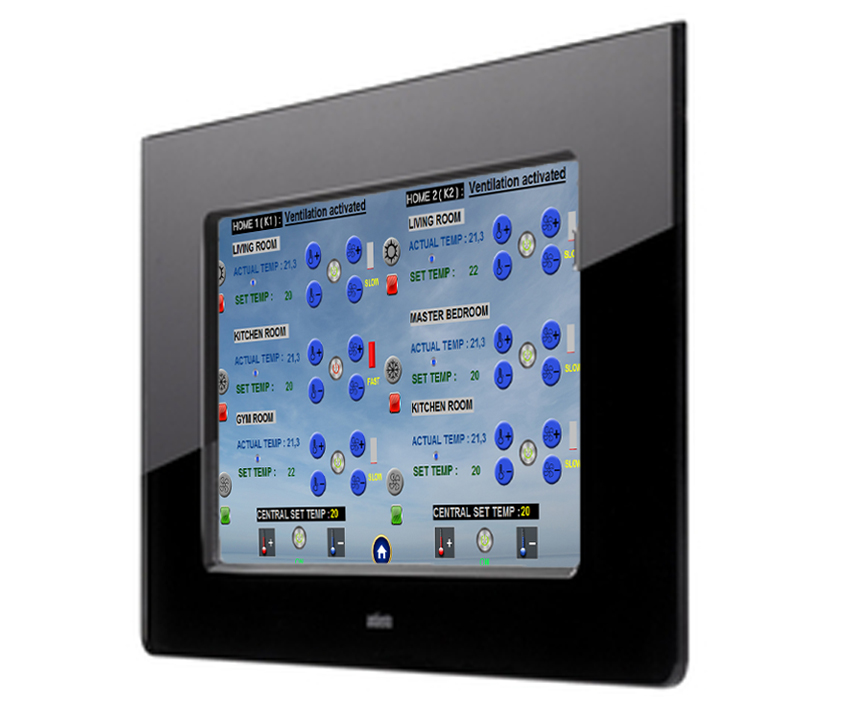

Control your building using the top Netx Automation Visualization Software which supports:

Intelligent touch switch Microphone and speaker for hands-free intercom use Resistive touch screen Communication with tci contatto The TVC (TciVisuClient) allows easy interfacing with a wide range of applications and systems. Elvis, Gira, NXA, Berker,… Mounting using a flush-mounted box

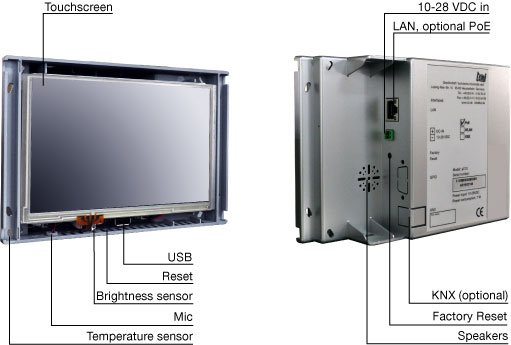

Technical data

* Touch: 7", WVGA 800 x 480, 300 cd/m² * ARM9 400MHz CPU * 128MB System-Memory + * 128MB Storage-Memory * LAN * USB: covered, accessable from the front side * Speakers * Handsfree speaking for intercom, microfon * Brightness and temperature sensor * Power-over-Ethernet (PoE) [option]

Specifications

* Working temperature: 0 up to 35°C * Storage temperature: -20 up to 60°C * Relative humidity: 20 up to 80%, not condensing * Power supply 10-28 VDC, optional: PoE * Weight: 0,3 kg

-------------------------

Equipment

sospeso16-PC

7" Widescreen TFT, WVGA 800 x 480, 300 cd/m², resistive touch, ARM9 400 MHz CPU, 128MB System-Memory + 128MB Storage-Memory, LAN, USB, speaker, microfon, brightness and temperature sensor, plastic front in silver, operating system: WinCE Mounting for tci-flush-mounted box

------------------------

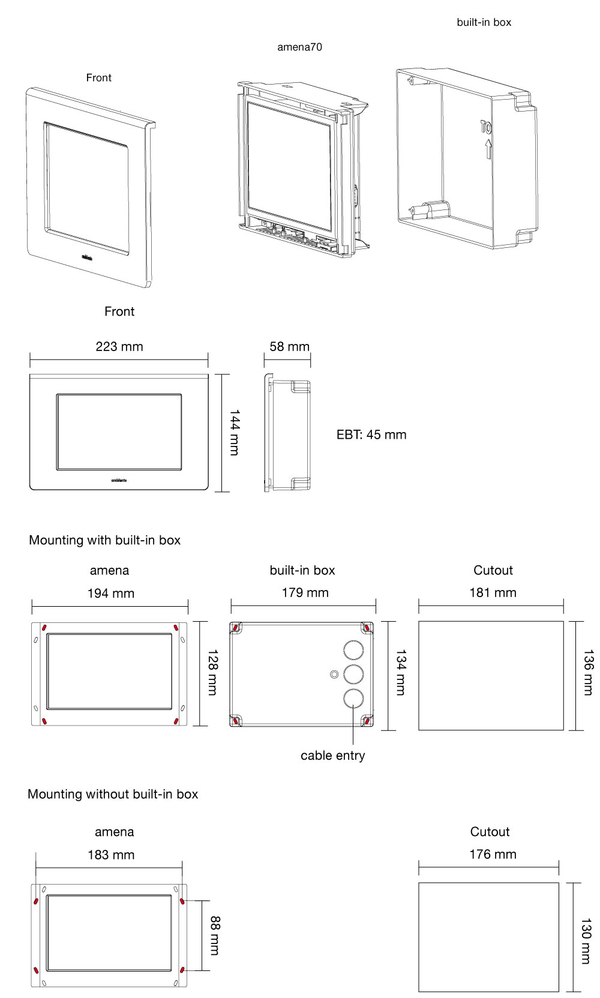

Mounting

amena70-GEH-UPG Built-in box (Installation depth 45mm)

------------------------

Front

amena-Front-PRM-ALU: Aluminium front anodized black / silver (+ 202,50 € on basic price )

amena-Front-PRM-GLAS Glass front (+ 216,00 € on basic price )

------------------------

Operating system

WinCE

------------------------

Server

HP Micro Proliant N40L with Microsoft Windows XP Dual-Core AMD Turion II Model NEO N40L (1.5 GHz) 2 MB L2 Cache 2GB (1 x 2GB) PC3-10600E (UDIMM) Embedded SATA Controller with Embedded RAID (0, 1) Up to 4 Non Hot Plug Hard Drives 250GB SATA Non Hot Plug (LFF) Single NC107i PCIe Gigabit Server Adapter Ports: eSATA (1), VGA (1), USB 7 (6 + 1 internal) Slots: 1 PCI-Express x16 (x8 speed), 2 PCI-Express x8 (x4 speed) 150 Watts Non-Hot Plug, Non redundant Power Supply

------------------------

Visualization

S04.01.0.20.02 NetX Voyager Server 1.0 UD (HOME VERSION)
