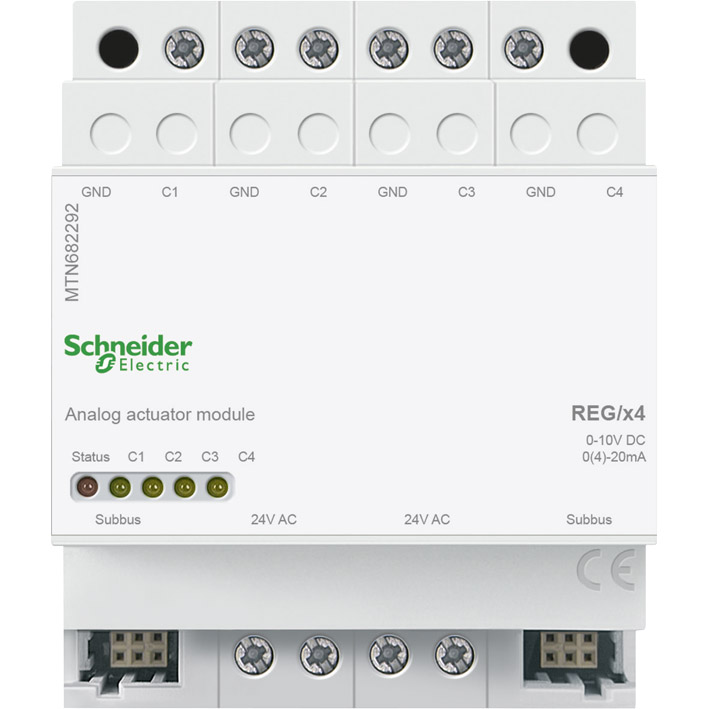

Analogue actuator module REG/ 4-gang

461,34€
SKU: MTN682292

Extension module to extend analogue actuator
REG-K/4-gang from 4 to 8 analogue outputs. Connections
are made using the sub-bus. The output
channels can be independently parameterised for
different current and voltage signals to control different
control values (e.g. servomotors).
For installation on DIN rails EN 50022.
Auxiliary voltage: AC 24 V (+/-10 %)
Analogue outputs: 4
Current signals: 0 ... 20 mA, 4 ... 20 mA
Voltage signals: 0 ... 1 V, 0.. 10 V (DC)
Continuity checking: 4 ... 20 mA
Outputs: DC 24 V, 100 mA (total)
Device width: 4 modules = approx. 72 mm
˜ In KNX, to be completed with: Analogue actuator REG-K/4-gang,
art. no. 682291.
— Contents: With sub-bus jumper.

Price: 461,34€
