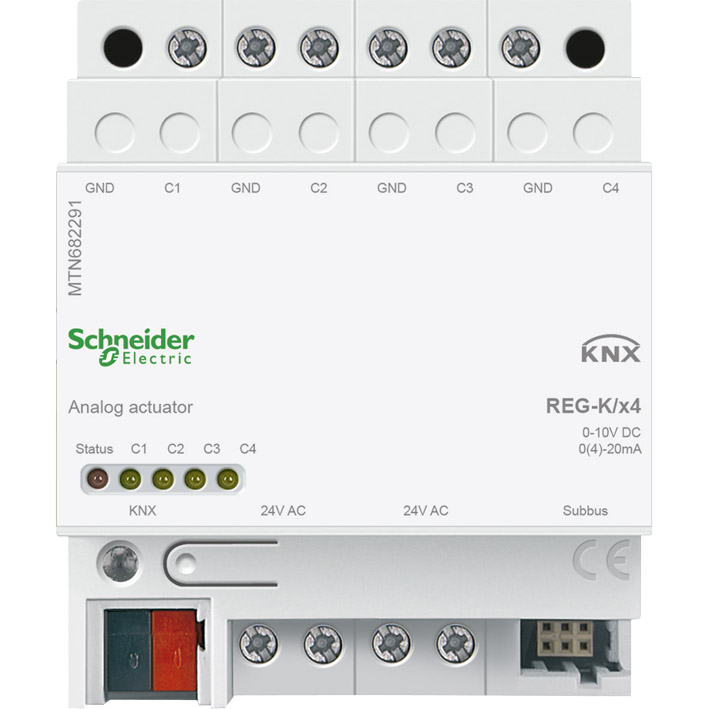

The output channels can be parameterised for different
current and voltage signals to control different
analogue variables (e.g. servomotors). The
actuator has four analogue outputs. For use in
connection with the analogue actuator module
REG/4-gang, 8 analogue outputs are provided.
Connections are made using the sub-bus.
For installation on DIN rails EN 50022.
The bus is connected using a bus connecting terminal;
a data rail is not necessary.
With continuity checking of the current outputs.
Auxiliary voltage: AC 24 V (+/-10 %)
Analogue outputs: 4
Current signals: 0 ... 20 mA, 4 ... 20 mA
Voltage signals: 0 ... 1 V, 0.. 10 V
Continuity checking: 4 ... 20 mA
Outputs: DC 24 V, 100 mA (total)
Device width: 4 modules = approx. 72 mm
˜ In KNX, to be completed with: Power supply REG, AC 24 V / 1 A,
art. no. 663529.
Accessories: Analogue actuator module REG/4-gang, art. no.
682292.
— Contents: With bus connecting terminal and cable cover.
