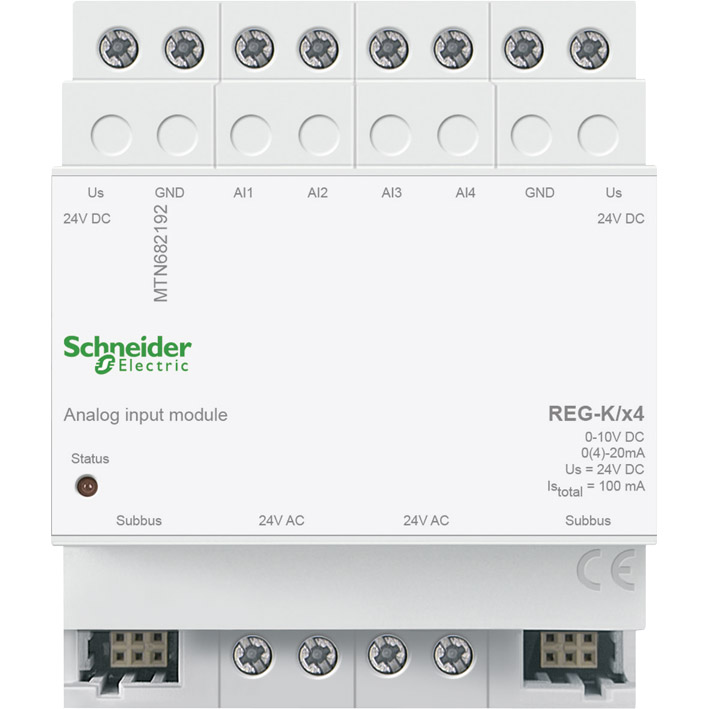

Extension module to extend weather station
REG-K/4-gang and analogue input REG-K/4-gang
from 4 to 8 analogue outputs. Connections are
made using the sub-bus. Up to four analogue sensors
can be connected in any combination.

For installation on DIN rails EN 50022.

Evaluation and limit value processing is performed
in the analogue input or weather station. With continuity checking of the 4 ... 20 mA inputs.

Auxiliary voltage: AC 24 V (+/-10 %)
Rating: max. 4 VA
Analogue inputs: 4
Current interface: 0 ... 20 mA, 4 ... 20 mA
Voltage interface: 0 ... 1 V, 0 ... 10 V (DC)
A/D conversion: 14 bit
Outputs: DC 24 V, 100 mA
Continuity checking: 4 ... 20 mA
Device width: 4 modules = approx. 72 mm

In KNX, to be completed with: Weather station REG-K/4-gang, art. no. 682991. Analogue input REG-K/4-gang, art. no. 682191. Power supply REG, AC 24 V / 1 A, art. no. 663529.

Accessories: Wind sensor with 0-10 V interface, art. no. 663591.
Wind sensor with 0-10 V interface and heating, art. no. 663592.
Rain sensor, art. no. 663595. Brightness sensor, art. no. 663593:

Twilight sensor, art. no. 663594: Temperature sensor, art. no. 663596.

Contents: With sub-bus jumper.
