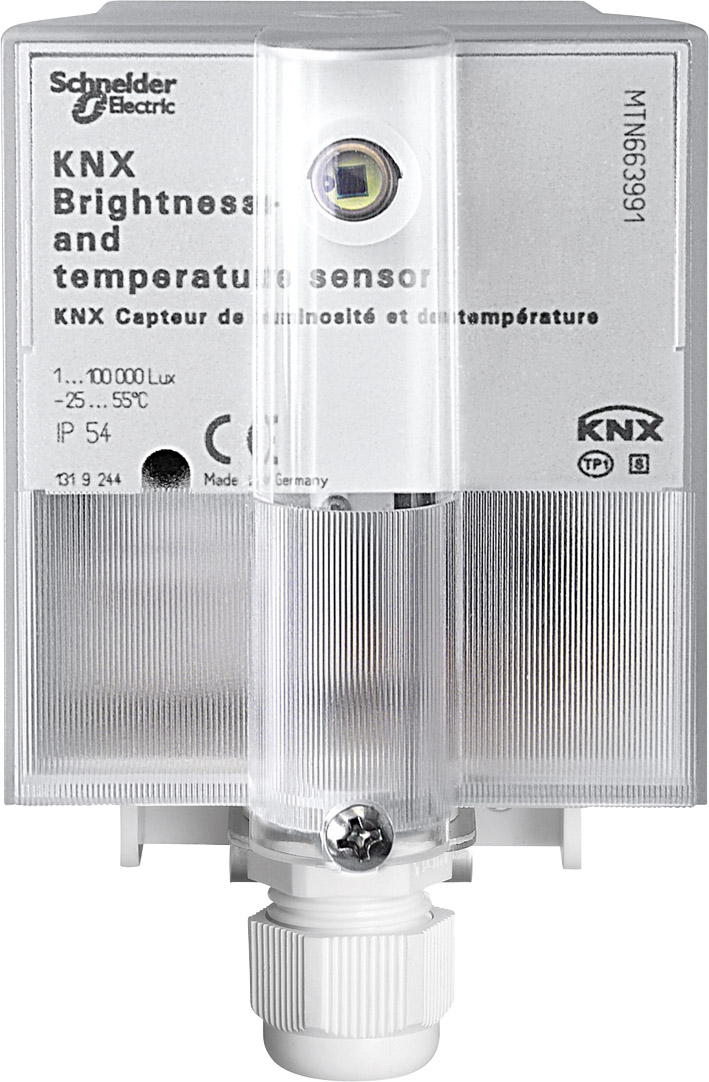

The sensor records brightness and temperature and transmits these values to the bus. It has a temperature sensor and a brightness sensor.
• 3 universal channels for single tasks or logic operations. Temperature and brightness threshold in any combination.
• Sun protection channel for blinds/roller shutter control. Objects for: twilight threshold, brightness threshold, drive control, automatic sun function, teaching, security.
• Automatic sun protection. Controls the blinds automatically during the day.
• Teaching object. With this, every brightness threshold can be reset by the touch of a key.
Suitable for mounting on an outside wall.With integrated bus coupler. The bus is connected using a bus connecting terminal.
Power consumption: max. 150 mW
Sensors: 2
Temperature measurement range: - 25 °C to + 55 °C (±5 % or ±1 degree)
Brightness measurement range: 1 to 100,000 lux (±20% or ±5 lux)
Type of protection: IP 54 according to DIN EN 60529 for vertical installation with cover
Dimensions: 110 x 72 x 54 mm
